Recovering a Mirror Set on Windows 10
23 March 2018 • by Bob • Windows, Troubleshooting
I run a mirror on the C drive for one of my Windows 10 systems, and a few nights ago that system wouldn't boot; I kept getting errors like "VOLMGRX internal error" and "A recently serviced boot binary is corrupt". I tried a few of the automatic Windows 10 recovery options while my system was rebooting, but nothing seemed to work. Skipping past the steps it took to get there, I also tried using the "bootrec /fixmbr" and "bootrec /fixboot" commands, with no luck, either.
However, since I was using a mirror set for the primary drive, I was able to do the following:

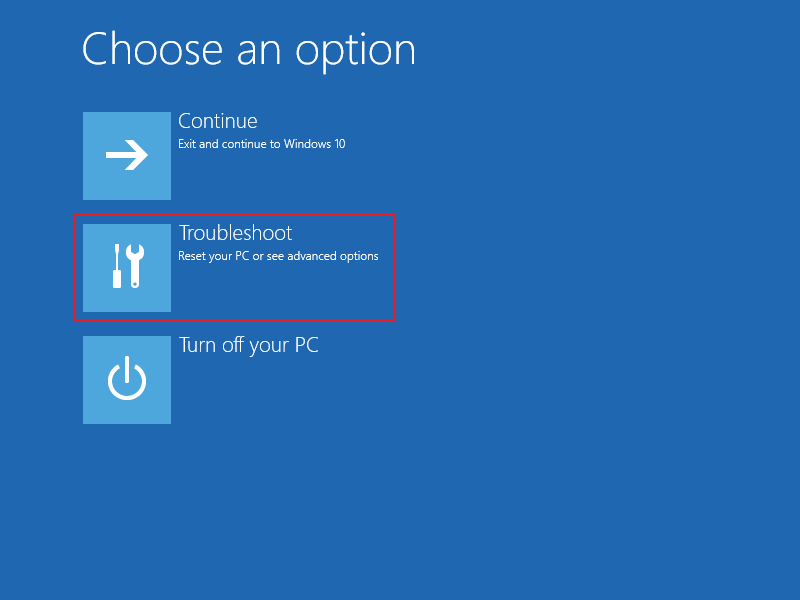

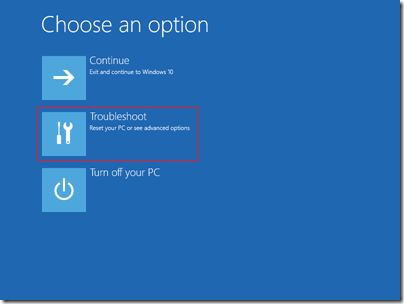

When I rebooted my system, I chose Troubleshoot for my startup option.

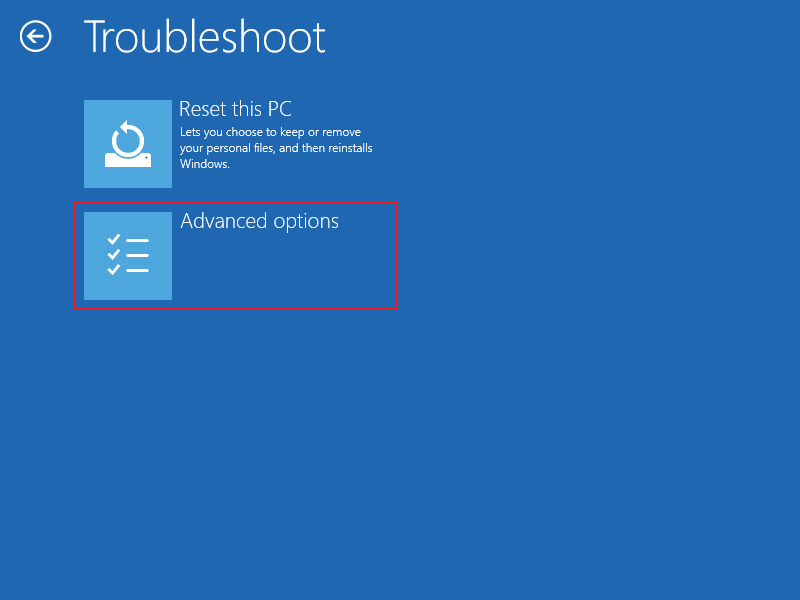

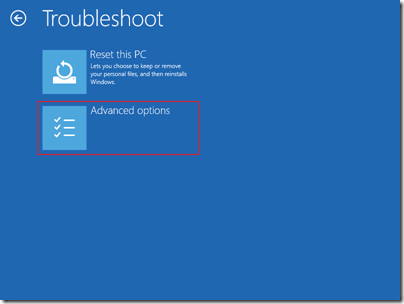

Step 2 - On the Troubleshoot screen, I chose Advanced options.

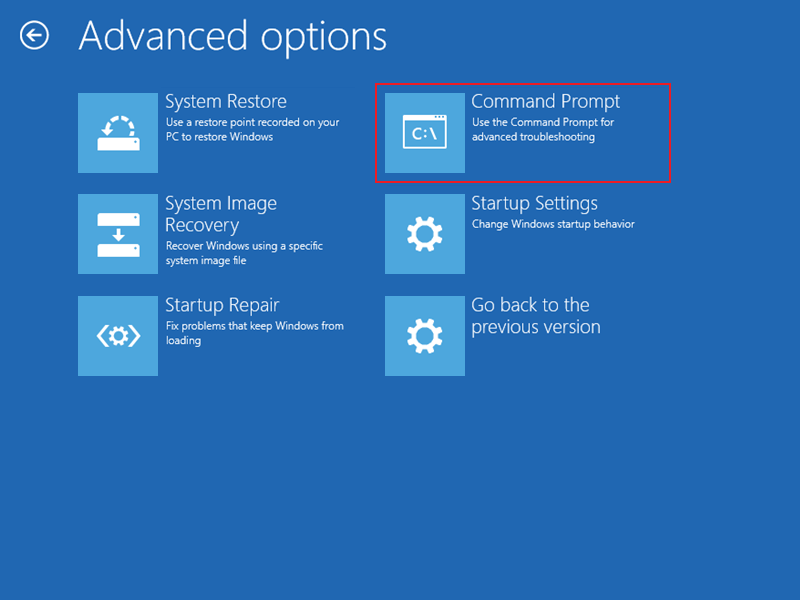

On the Advanced options screen, I chose Command prompt.
When the Command prompt opened, I typed the following commands:
diskpart
list volume
This returned a table like the following illustration, and I looked for the volume which showed status as "Failed Rd":
| Volume ### | Ltr | Label | Fs | Type | Size | Status | Info |
| ---------- | --- | ----------- | ----- | ---------- | ------- | --------- | -------- |
| Volume 0 | C | C-DRIVE | NTFS | Partition | 1848 GB | Failed Rd | Boot |
| Volume 1 | ESP | FAT32 | Partition | 500 MB | Healthy | System | |
| Volume 2 | WINRETOOLS | NTFS | Partition | 454 MB | Healthy | Hidden | |
| Volume 3 | Image | NTFS | Partition | 12 GB | Healthy | Hidden | |
| Volume 4 | DELLSUPPORT | NTFS | Partition | 1087 MB | Healthy | Hidden |
Once I knew the volume that was having the issue, I was able to run the following commands to recover the mirror set:
select volume 0
recover
I knew that the recovery was going to take a long to complete, and I could have used "detail volume" command every few minutes to check the status, (which will show "Rebuild" in the status column). But the truth is - it was already way past midnight, so I simply went to sleep for the night. When I got up the following morning, everything was fine and I was able to reboot successfully.
FYI - The following article has all the information you need about using the Windows DiskPart command, although be forewarned - you can really screw up your system if you do something wrong.
